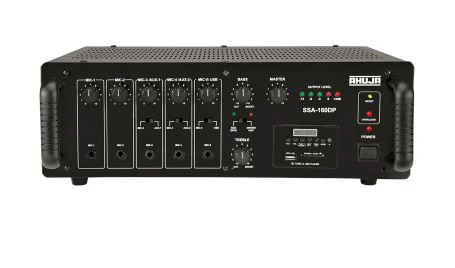

Ahuja SSA-160DP Amplifier

120.000 BHD

  • 5 Mic & 2 Aux Inputs.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the program.
  • Line Input for connecting the output from any external mixer or permitting SSA-160DP to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
  • 5 LED array for output level monitoring.

SPECIFICATION

Power Output- 220W Max., 160W RMS at 10% THD, 140W RMS at 5% THD, 120W RMS at 2% THD

Output Regulation= 2 dB, no load to full load at 1kHz

Input Channels- 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ

Frequency Response- 50-15,000Hz ±3dB

Signal to Noise Ratio- 60dB

Tone Controls- Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

Output- Preamp 200mV/600Ω, Line 1V/1kΩ

Speaker Output- 4Ω, 8Ω, 70V & 100V

Digital Player- MP3 Player with USB, SD and MMC Card Reader

Power Supply- AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)

Power Consumption- AC: 300VA DC: 4A

Dimensions- W420 × H155 × D320 mm

Weight- 13.8kg
